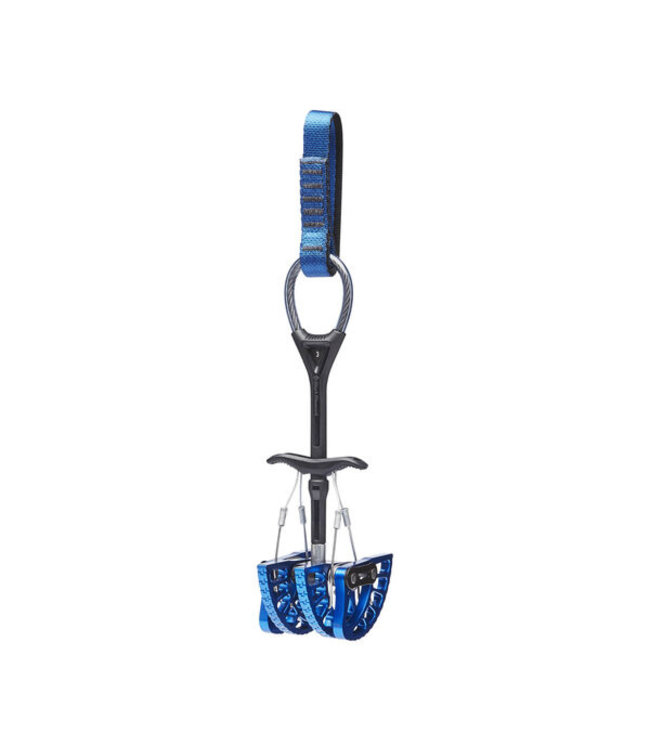

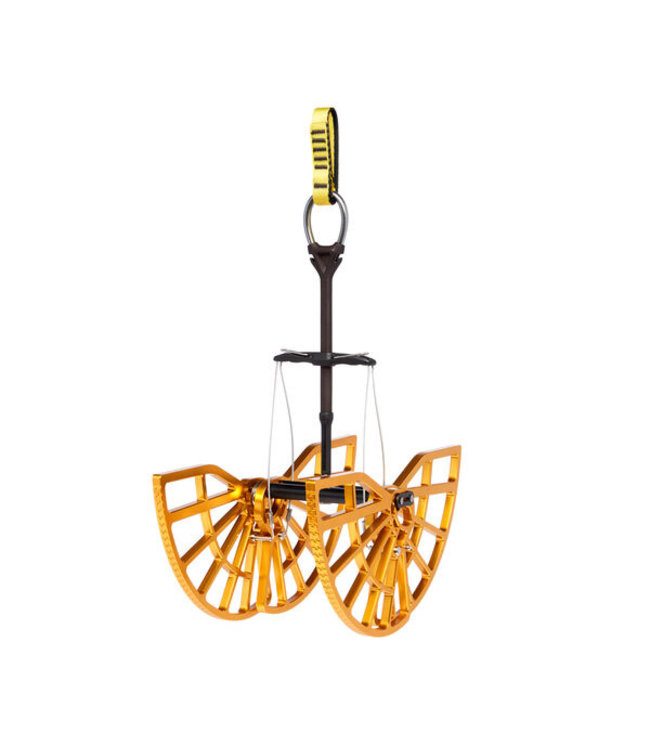

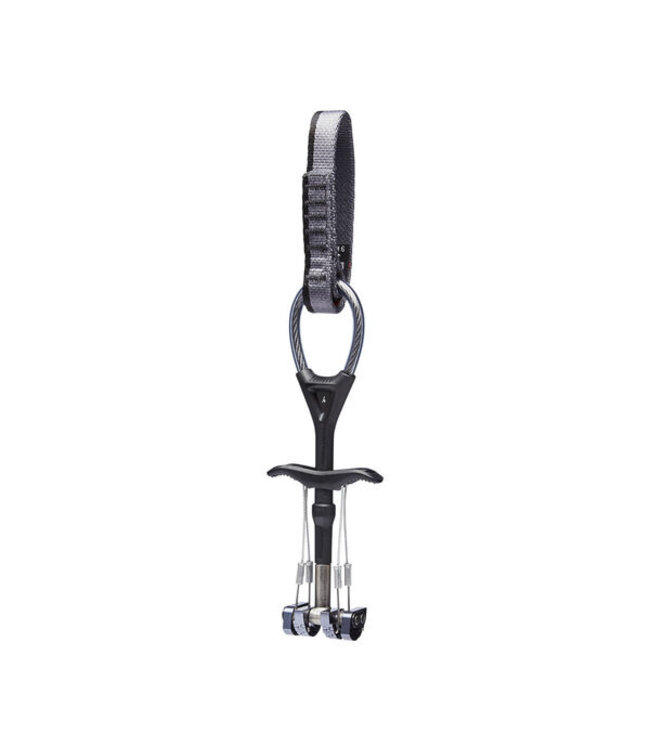

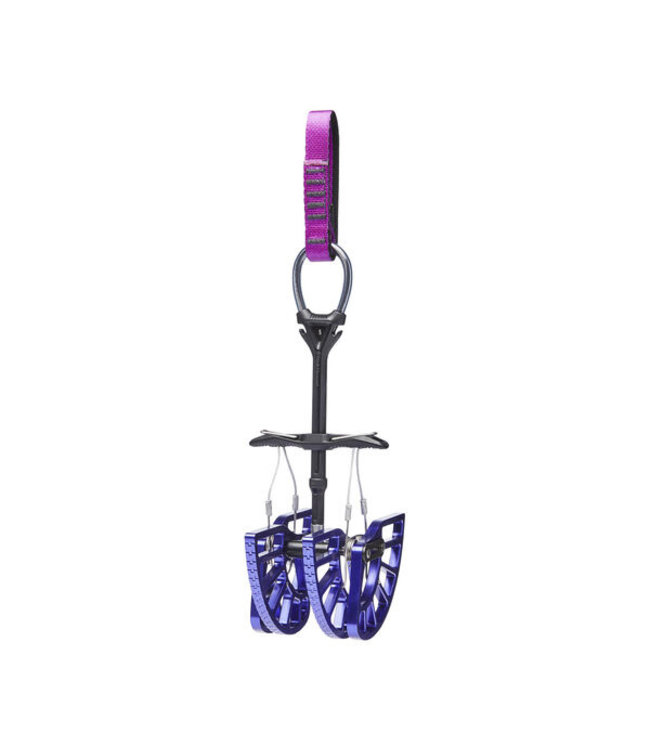

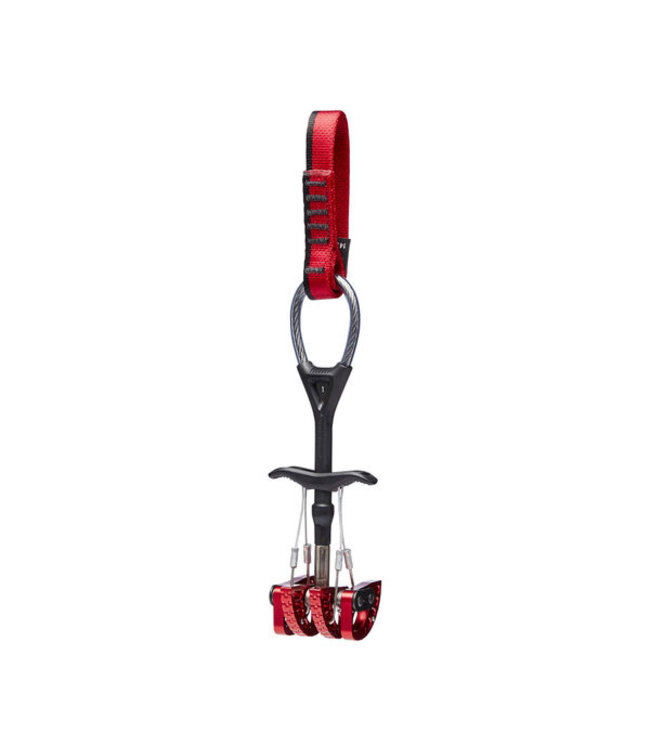

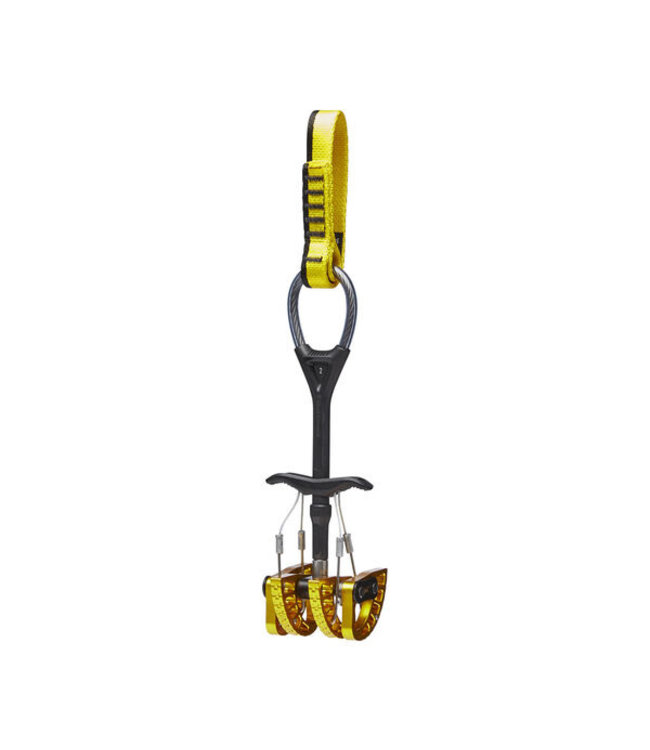

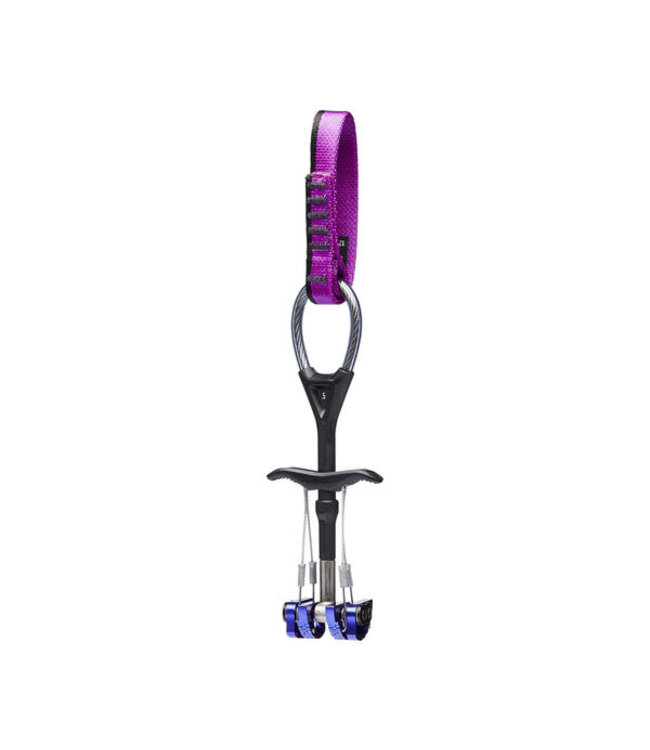

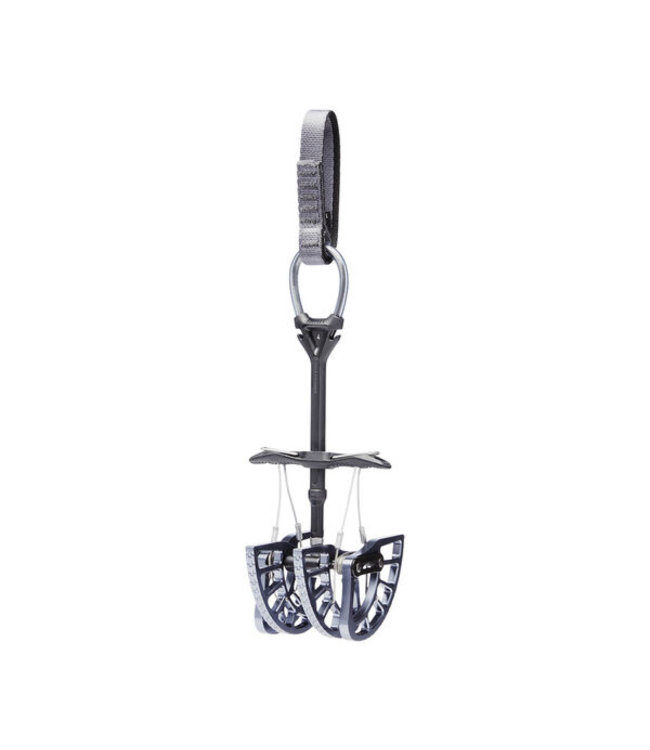

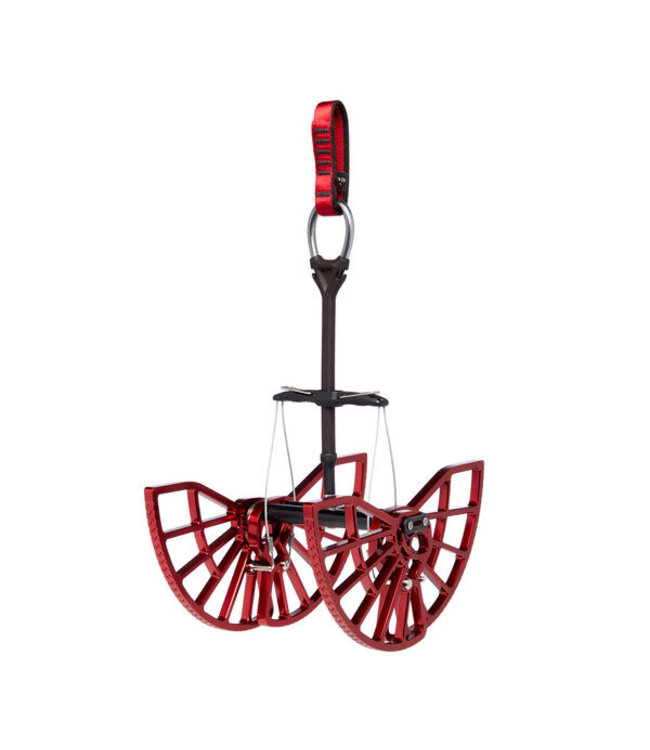

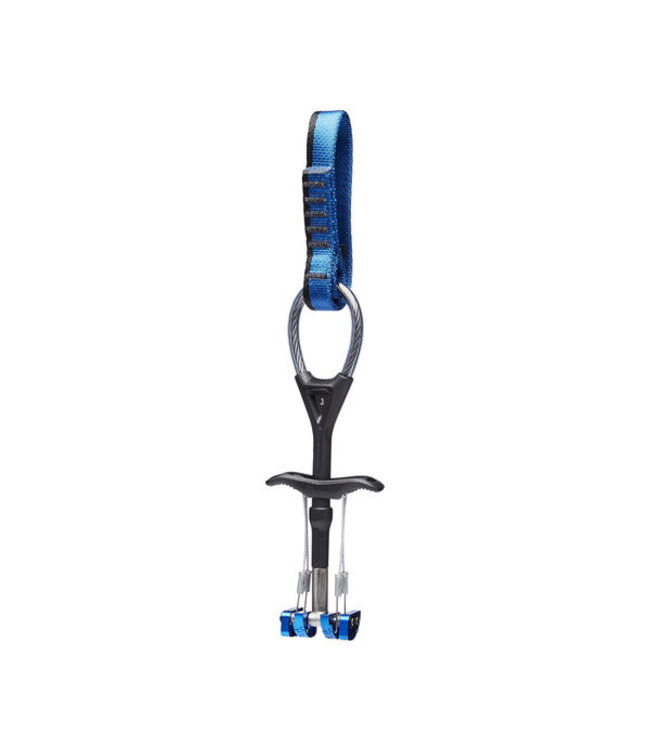

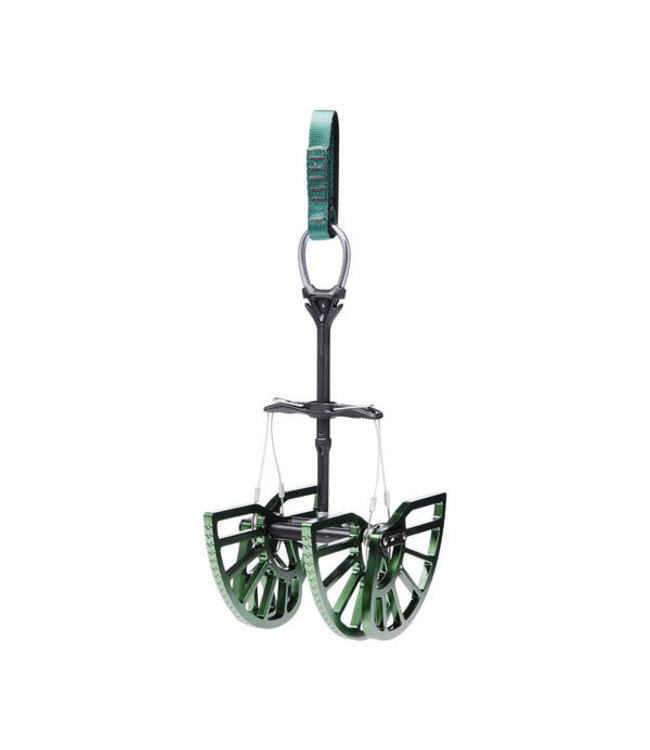

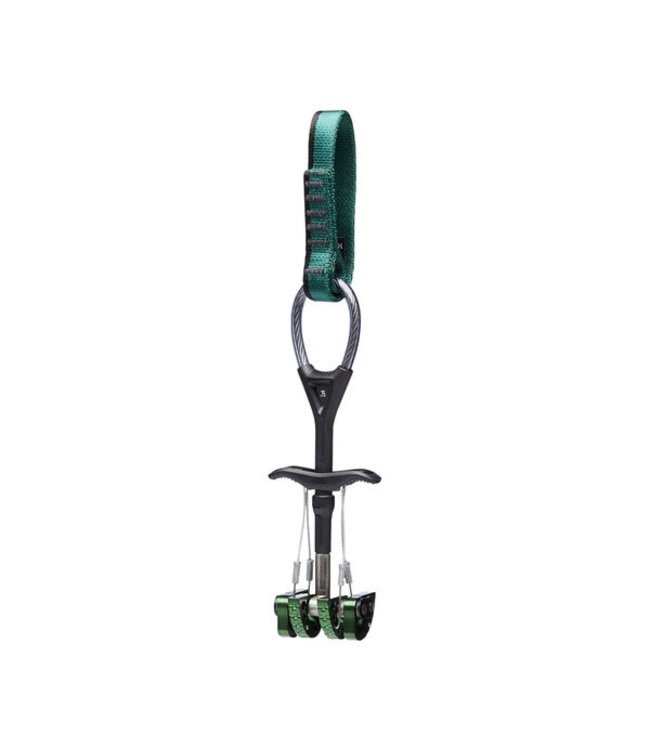

Black Diamond Camalot C4

Black Diamond's Camalot C4 has been redesigned to be 10% lighter and sports a wider trigger for easier handling
Article number: BD2623040000ALL1
Availability: In stock (1)

Product Description

Black Diamond has just made their trusted cam even better. The Camalot C4 is 10% lighter than previous models and has a wider trigger for easier handling. The cam lobes have been redesigned to be lighter, more sculpted and optimized for strength to weight. The slings have been updated visually for easier racking differentiation and match the colors of the Neutrino Rackpack carabiner. Black Diamond has also introduced a trigger keeper on sizes #4, #5, and #6, keeping the big cams contracted and compact.

Key Features:

  • Double-axle design offers the widest range for each cam unit
  • C-Loop continuous cable stem design is strong and durable

Instructions



Technical Specifications

Size Weight Range Strength
0.3 2.46 oz. (69.8 g) 0.54-0.92 in. (13.8-23.4 mm) 8 kN (1798 lbf)
0.4 2.73 oz. (77.5 g) 0.61-1.05 in. (15.5-26.7 mm) 9 kN (2023 lbf)
0.5 3.28 oz. (93 g) 0.77-1.32 in. (19.6-33.5 mm) 12 kN (2698 lbf)
0.75 3.79 oz. (107.5 g) 0.94-1.62 in. (23.9-41.2 mm) 12 kN (2698 lbf)
#1 4.37 oz. (123.9 g) 1.19-2.05 in. (30.2-52.1 mm) 12 kN (2698 lbf)
#2 4.95 oz. (140.3 g) 1.46-2.55 in. (37.2-64.9 mm) 12 kN (2698 lbf)
#3 6.39 oz. (181.1 g) 2.00-3.46 in. (50.7-87.9 mm) 12 kN (2698 lbf)
#4 9.09 oz. (257.8 g) 2.60-4.51 in. (66.0-114.7 mm) 14 kN (3137 lbf)
#5 12.28 oz. (348.1 g) 3.36-5.85 in. (85.4-148.5 mm) 14 kN (3137 lbf)
#6 1 lb. 2.7 oz. (529.9 g) 4.50-7.68 in. (114.1-195.0 mm) 14 kN (3137 lbf)
